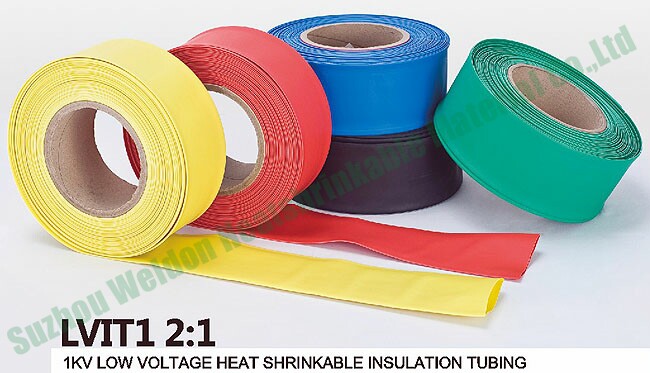

1KV LOW VOLTAGE HEAT SHRINK INSULATION TUBE【LVIT1】

Thin wall heat shrinkable tubing for insulating and protecting bus bar against flashover caused by accidental bridging. Allows the air spacing between bus bar to be kept at minimum when space is limited in switchgear cabinets. Easy to position on a variety of curved and bent bus bar of both rectangular and circular shapes.

Features and Benefits
★Reduces bus bar clearance requirement.
★Provides more freedom in designing switchgear cabinets when space is limited.
★Suitable for insulating bus bar up to 1kv.
★Protects against short circuit and electrical leakage caused by small animals.
★Protects against corrosion and other contaminants that may cause accidental flashover.
★Available in continuous length for convenient and economical installation.
★Highly flame retardant.
★RoHS compliant, halogen free.

Shrink physical properties
★Temperature: -40℃ to 105℃
★Shrink Temperature: 125℃
Color selection
★Black, Red, Yellow, Blue, Green
Product Code Cross References
★Raychem/Tyco: LVIT

Technical Details

Test Item		Test Method	Typical Value
Tensile strength		ASTM D2671	≥12MPa
Thermal endurance		IEC 216	105℃
Breakdown elongation		ASTM D2671	≥400%
Density		ASTM D2671	1.21g/cm3
Dielectric strength		ASTM D2671	≥20KV/MM
Accelerated aging at 136℃ for 168hrs	Tensile strength	ASTM D2671	≥12MPa
	Breakdown elongation		≥300%
Low temperature flexibility at -40℃ for 4hrs		ASTM D2671	No cracking
Heat shock at 200℃ for 4hrs		ASTM D2671	No drop/No flow
Flammability		ASTM D2863	≥28
Smoke index		-	Less than 120
Volume resistivity		ASTM D2671	≥1014Ω.cm
Water absorption at 23℃ for 336hrs		ASTM D570	≤0.5%
Resistance to selected fluids at 23℃ for 168hrs	Tensile strength	IEC 60684-2	≥8MPa
	Breakdown elongation		≥250%
Copper corrosion at 158℃ for 168hrs		IEC60684-3	Pass
Long term aging at 120℃ for 3000hrs Breakdown elongation		IEC60684-2	≥17.5%
Color fastness to light		IEC60684-3	Compare between exposed and unexposed part : the color does not change

Product Selection

Product Code	Before Shrink		After Shrink		Standard Package (m/roll)
Product Code	I.D.(mm) ≥	Wall Thickness(mm)	I.D.(mm) ≤	Wall Thickness(mm)	Standard Package (m/roll)
LVIT1-2-18/9	18	0.27	9	0.55	50
LVIT1-2-20/10	20	0.30	10	0.60	50
LVIT1-2-25/12	25	0.30	12	0.60	25
LVIT1-2-30/15	30	0.30	15	0.60	25
LVIT1-2-35/17	35	0.32	17	0.65	25
LVIT1-2-40/20	40	0.32	20	0.65	25
LVIT1-2-45/22	45	0.35	22	0.70	25
LVIT1-2-50/25	50	0.35	25	0.70	25
LVIT1-2-60/30	60	0.40	30	0.80	25
LVIT1-2-70/35	70	0.40	35	0.80	25
LVIT1-2-80/40	80	0.40	40	0.80	25
LVIT1-2-90/45	90	0.40	45	0.80	25
LVIT1-2-100/50	100	0.45	50	0.90	25
LVIT1-2-120/60	120	0.45	60	0.90	25
LVIT1-2-150/60	150	0.57	60	1.40	25
LVIT1-2-180/72	180	0.57	72	1.40	25
LVIT1-2-210/84	210	0.70	84	1.60	25
