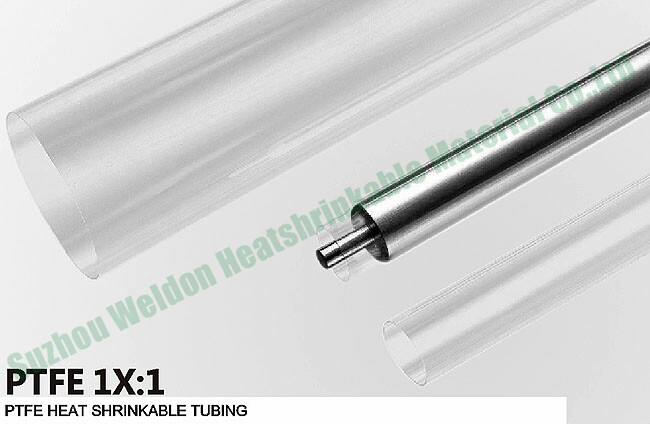

| PTFE HEAT SHRINK TUBING ¡¾PTFE¡¿ |
|
| Specially used in the surroundings of extremely electricity, chemistry and heat, suitable for industry, automotive, military, aerospace and electric elements. |
Temperature Range
¡ïOperating Temperature: -80¡æ to 260¡æ ¡ïShrink Temperature: 350¡æ
Color
¡ïtransparent
Product code cross references
¡ïRAYCHEM/TYCO: RW-175/TFE ¡ïDSG CANUSA: CTFE250 ¡ïSUMITOMO: TPE CP |
|
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
¡Ý17MPa |
| Breakdown elongation |
ASTM D2671 |
¡Ý200% |
| Heat shock at 400¡æ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Dielectric strength |
ASTM D2671 |
¡Ý25KV/MM |
| Low temperature flexibility at -65¡æ for 4hrs |
ASTM D2671 |
No cracking |
| Density |
ASTM D792 |
2.1-2.29 |
| Water absorption |
ASTM D570 |
¡Ü0.1% |
| Hardness shore |
ASTM D785 |
50-60D |
| Volume resistivity |
ASTM D2671 |
¡Ý1018¦¸ CM |
| Flammability |
ASTM D2671 |
Not flammable |
| Organic dissolvent resistance |
ASTM D543 |
No change |
| Effect by the sunshine |
- |
No |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)¡Ý |
I.D.(mm)¡Ü |
| PTFE-0.5 |
0.5 |
0.40 |
200 |
| PTFE-1.0 |
1.0 |
0.50 |
200 |
| PTFE-1.5 |
1.5 |
0.90 |
200 |
| PTFE-2.0 |
2.0 |
1.30 |
200 |
| PTFE-2.5 |
2.5 |
1.50 |
200 |
| PTFE-3.0 |
3.0 |
1.80 |
200 |
| PTFE-3.5 |
3.5 |
2.00 |
200 |
| PTFE-3.8 |
3.8 |
2.00 |
200 |
| PTFE-4.0 |
4.0 |
2.50 |
200 |
| PTFE-4.5 |
4.5 |
2.80 |
100 |
| PTFE-5.0 |
5.0 |
3.00 |
100 |
| PTFE-6.0 |
6.0 |
3.80 |
100 |
| PTFE-7.0 |
7.0 |
4.00 |
100 |
| PTFE-8.0 |
8.0 |
4.80 |
50 |
| PTFE-9.0 |
9.0 |
5.00 |
50 |
Ordering
¡ïProduct Code
¡ïQuantity
¡ïPackage
Thank you for your order and write accurately. |
