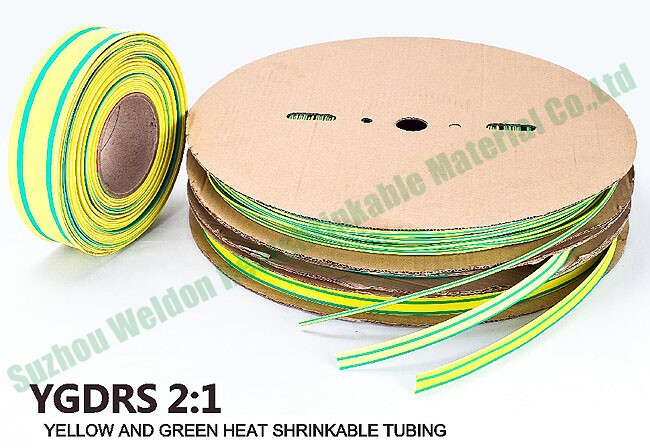

| YELLOW AND GREEN HEAT SHRINKABLE TUBE【YGDRS-2】 |
|
| YGDRS is mainly used for wires, cable, terminal, the welding point, capacitor, bare metal insulation and corrosion and special ground identifies. |
Features and Benefits
★Shrink ratio 2:1 available, providing easy installation even if there are large diameter difference
★Excellent flexibility, does not easily wrinkle
★Ideal for electronic insulation and protection ,strain relief and wire bundling.
★Common applications include electronic systems of subway, air craft, submarine and other control room facilities and environments.
★Rohs compliant halogen free , environmentally friendly
★Flame retardant meets the UL224 VW-1 standard |
Shrink physical properties:
★Operating Temperature: -40℃ to 125℃
★Shrink Temperature: 125℃
Color selection:
★yellow/green |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥12MPa |
| Breakdown elongation |
ASTM D2671 |
≥450% |
| Longitudinal shrink ratio |
ASTM D2671 |
≤±5% |
| Flame retardant |
UL224 |
VW-1 |
| Heat shock at 200℃ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Dielectric strength |
ASTM D2671 |
≥15KV/MM |
| Water absorption at 23℃ for 336hrs |
ASTM D570 |
≤0.5% |
| Low temperature flexibility at -40℃ for 4hrs |
ASTM D2671 |
No cracking |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)≥ |
Wall
Thickness(mm) |
I.D.(mm)≤ |
Wall
Thickness(mm) |
| YGDRS-2-1.0/0.5 |
1.0 |
0.18 |
0.5 |
0.36 |
200 |
| YGDRS-2-1.5/0.75 |
1.5 |
0.19 |
0.75 |
0.38 |
200 |
| YGDRS-2-2.0/1.0 |
2.0 |
0.19 |
1.0 |
0.38 |
200 |
| YGDRS-2-2.5/1.25 |
2.5 |
0.20 |
1.25 |
0.40 |
200 |
| YGDRS-2-3.0/1.5 |
3.0 |
0.20 |
1.5 |
0.40 |
200 |
| YGDRS-2-4.0/2.0 |
4.0 |
0.20 |
2.0 |
0.40 |
200 |
| YGDRS-2-5.0/2.5 |
5.0 |
0.21 |
2.5 |
0.42 |
100 |
| YGDRS-2-6.0/3.0 |
6.0 |
0.21 |
3.0 |
0.42 |
100 |
| YGDRS-2-7.0/3.5 |
7.0 |
0.21 |
3.5 |
0.42 |
100 |
| YGDRS-2-8.0/4.0 |
8.0 |
0.21 |
4.0 |
0.42 |
100 |
| YGDRS-2-10.0/5.0 |
10.0 |
0.25 |
5.0 |
0.50 |
100 |
| YGDRS-2-12.0/6.0 |
12 |
0.25 |
6.0 |
0.50 |
100 |
| YGDRS-2-14/7 |
14 |
0.25 |
7.0 |
0.50 |
100 |
| YGDRS-2-16/8 |
16 |
0.29 |
8.0 |
0.58 |
100 |
| YGDRS-2-18/9 |
18 |
0.30 |
9.0 |
0.6 |
50 |
| YGDRS-2-20/10 |
20 |
0.30 |
10 |
0.6 |
50 |
| YGDRS-2-25/12.5 |
25 |
0.35 |
12.5 |
0.7 |
25 |
| YGDRS-2-28/14 |
28 |
0.37 |
14 |
0.75 |
25 |
| YGDRS-2-30/15 |
30 |
0.39 |
15 |
0.78 |
25 |
| YGDRS-2-35/17.5 |
35 |
0.39 |
17.5 |
0.78 |
25 |
| YGDRS-2-40/20 |
40 |
0.39 |
20 |
0.78 |
25 |
| YGDRS-2-50/25 |
50 |
0.40 |
25 |
0.8 |
25 |
| YGDRS-2-60/30 |
60 |
0.43 |
30 |
0.86 |
25 |
Ordering
★Product Code
★Quantity
★Package
Thank you for your order and write accurately. |
