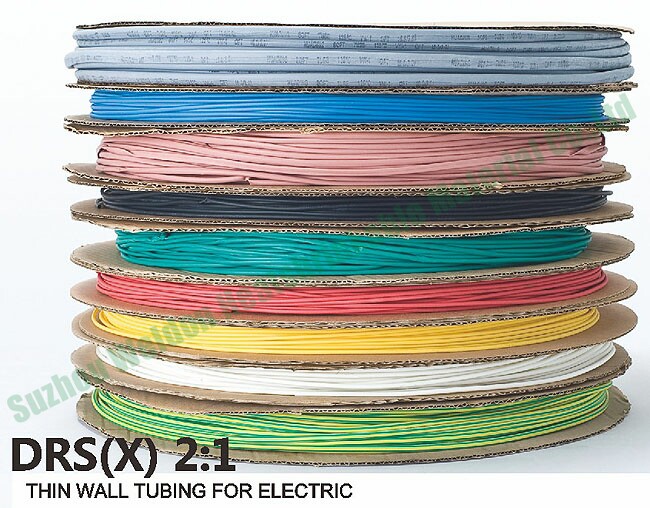

| THIN WALL TUBING FOR ELECTRIC WITH 2 Magnification 【DRS(X)-2】 |
|
| Thin wall tubing with environmentally friendly halogen free formula. Excellent performance for various commercial applications where insulating, color-coding, bundling and light harness jacketing are desired |
Features and Benefits
★Shrink ratio 2:1 available, providing easy installation even if there are large diameter difference
★Excellent flexibility, does not easily wrinkle
★Ideal for electronic insulation and protection ,strain relief and wire bundling.
★Common applications include electronic systems of subway, air craft, submarine and other control room facilities and environments.
★Rohs compliant halogen free , environmentally friendly
★Flame retardant meets the UL224 VW-1 standard |
Shrink physical properties:
★Operating Temperature: -40℃ to 125℃
★Shrink Temperature: 125℃
Color selection:
★Black, red, blue, green, yellow,
transparent, or other colors
Product code cross references:
★RAYCHEM/TYCO: VERSAFIT V2
★DSG CANUSA: DERAY® H
★SUMITOMO: F2(Z)
★LG: GSHS-1625LT |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥10.4MPa |
| Breakdown elongation |
ASTM D2671 |
≥350% |
| Longitudinal shrink ratio |
ASTM D2671 |
≤±5% |
| Flame retardant |
UL224 |
VW-1 |
| Heat shock at 200℃ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Dielectric strength |
ASTM D2671 |
≥15KV/MM |
| Water absorption at 23℃ for 336hrs |
ASTM D570 |
≤0.5% |
| Low temperature flexibility at -40℃ for 4hrs |
ASTM D2671 |
No cracking |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)≥ |
Wall
Thickness(mm) |
I.D.(mm)≤ |
Wall
Thickness(mm) |
| DRS(X)-2-0.6/0.4 |
0.6 |
0.14 |
0.4 |
0.20 |
200 |
| DRS(X)-2-0.8/0.5 |
0.8 |
0.14 |
0.5 |
0.20 |
200 |
| DRS(X)-2-1.0/0.5 |
1.0 |
0.15 |
0.5 |
0.25 |
200 |
| DRS(X)-2-1.5/0.75 |
1.5 |
0.18 |
0.75 |
0.30 |
200 |
| DRS(X)-2-2.0/1.0 |
2.0 |
0.17 |
1.0 |
0.30 |
200 |
| DRS(X)-2-2.5/1.25 |
2.5 |
0.17 |
1.25 |
0.30 |
200 |
| DRS(X)-2-3.0/1.5 |
3.0 |
0.23 |
1.5 |
0.40 |
200 |
| DRS(X)-2-3.5/1.75 |
3.5 |
0.22 |
1.75 |
0.40 |
200 |
| DRS(X)-2-4.0/2.0 |
4.0 |
0.22 |
2.0 |
0.40 |
200 |
| DRS(X)-2-4.5/2.25 |
4.5 |
0.22 |
2.25 |
0.40 |
100 |
| DRS(X)-2-5.0/2.5 |
5.0 |
0.22 |
2.5 |
0.40 |
100 |
| DRS(X)-2-6.0/3.0 |
6.0 |
0.22 |
3.0 |
0.40 |
100 |
| DRS(X)-2-7.0/3.5 |
7.0 |
0.21 |
3.5 |
0.40 |
100 |
| DRS(X)-2-8.0/4.0 |
8.0 |
0.21 |
4.0 |
0.40 |
100 |
| DRS(X)-2-9.0/4.5 |
9.0 |
0.21 |
4.5 |
0.40 |
100 |
| DRS(X)-2-10.0/5.0 |
10 |
0.21 |
5.0 |
0.40 |
100 |
| DRS(X)-2-11/5.5 |
11 |
0.26 |
5.5 |
0.50 |
100 |
| DRS(X)-2-12/6 |
12 |
0.26 |
6.0 |
0.50 |
100 |
| DRS(X)-2-13/6.5 |
13 |
0.26 |
6.5 |
0.50 |
100 |
| DRS(X)-2-14/7 |
14 |
0.26 |
7.0 |
0.50 |
100 |
| DRS(X)-2-15/7.5 |
15 |
0.29 |
7.5 |
0.55 |
100 |
Ordering
★Product Code
★Quantity
★Package
Thank you for your order and write accurately.
Remark
X:
(y) means flame,
(n) means no flame |
