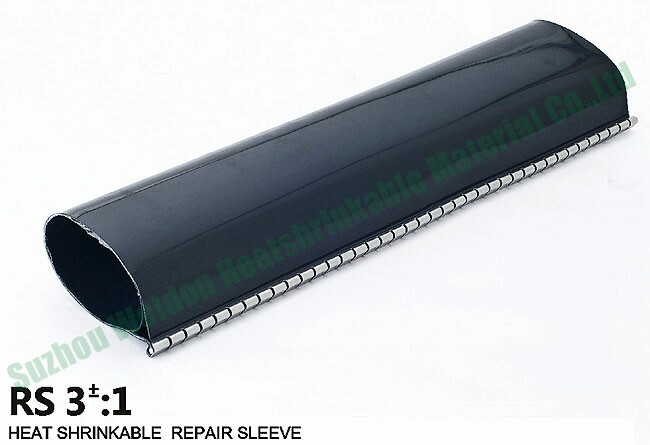

| HEAT SHRINK REPAIR SLEEVE【RS】 |
|
| Heat shrinkable repair sleeve is adhesive lined and closed with a flexible stainless0steel locking channel. Specifically designed to quickly repair damaged cable jacking, providing sealing, insulation and protection of odd-shaped electrical objects where tubing insulation materials are not applicable |
Features and Benefits
★Quickly fitted in breakage
★insulating and tight-fitting repair obtained in one step by heating, which makes the sleeve coating melt and flow into interstices.
★moisture-proof
★semi-rigid out layer provides abrasion and corrosion resistance
★performs well in harsh environment
★steel channel enables permanent closure system
★customized lengths are available
★RoHS compliant, halogen free |
Shrink physical properties
★Operating Temperature: -25℃ to 90℃
★Shrink Temperature: 135℃
Color selection
★Black, red
Product Code Cross References
★Raychem/Tyco: CRSM
★DSG Canusa: CRDW
★3M: HDCW |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥14MPa |
| Breakdown elongation |
ASTM D2671 |
≥350% |
| Specific gravity |
ASTM D792 |
1.1-1.2 |
| Elongation after heat aging(150℃ for 168 hrs) |
ASTM D2671 |
300% |
| Tensile strength after heat aging |
ASTM D2671 |
12Mpa |
| Low temperature flexibility(-25℃ for 4 hrs) |
ASTM D2671 |
Out layer & adhesive layer no cracking |
| Hardness (shore D) |
ASTM D2240 |
55-60D |
| Heat shock(200℃ for 4 hrs) |
ASTM D2671 |
No cracking or flowing |
| Dielectric strength |
ASTM D2671 |
15KV/mm |
| Volume resistivity |
ASTM D257 |
1013Ω.CM |
| Dielectric constant |
IEC 250 |
5.0MAX |
| Water absorption |
ASTM D570 |
≤0.5% |
| Fungus resistance |
ASTM G21 |
No growth |
Product Selection
| Product Code |
Before shrink (mm) |
After shrink(mm) |
Standard length(mm) |
| RS-34/8 |
34 |
8 |
1000-2000 |
| RS-42/10 |
42 |
10 |
1000-2000 |
| RS-53/13 |
53 |
13 |
1000-2000 |
| RS-62/20 |
62 |
20 |
1000-2000 |
| RS-75/20 |
75 |
20 |
1000-2000 |
| RS-85/27 |
85 |
27 |
1000-2000 |
| RS-93/25 |
93 |
25 |
1000-2000 |
| RS-105/30 |
105 |
30 |
1000-2000 |
| RS-122/30 |
122 |
30 |
1000-2000 |
| RS-135/34 |
135 |
34 |
1000-2000 |
| RS-146/38 |
146 |
38 |
1000-2000 |
| RS-164/42 |
164 |
42 |
1000-2000 |
| RS-175/50 |
175 |
50 |
1000-2000 |
| RS-198/55 |
198 |
55 |
1000-2000 |
| RS-210/65 |
210 |
65 |
1000-2000 |
| RS-230/80 |
230 |
80 |
1000-2000 |
| RS-260/100 |
260 |
100 |
1000-2000 |
Ordering
★Product Code★Quantity★Package
Thank you for your order and Write accurately |
