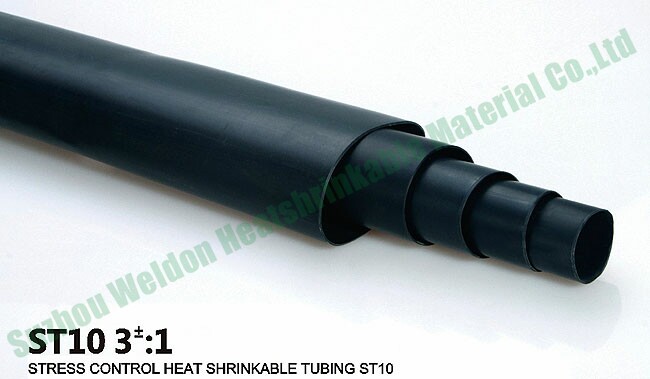

| STRESS CONTROL HEAT SHRINK TUBING【ST10】 |
|
| ST10 is mainly used in power cables connected position, supporting the use of other cables spare parts, mainly from the role of decentralized control stress |
Features and Benefits
★Reduces bus bar clearance requirement.
★Effectively disperse the heat generated by the cable connection.
★Complete specifications.
★Products relatively soft, easy to install
Shrink physical properties
★Operating Temperature: -40℃ to 125℃
★Shrink Temperature: 125℃ |
Color selection
★Black
Product Code Cross References
★DSG CANUSA : CSCR
★SUMITOMO: SCR-100
★RAYCHEM/TYCO: JSCR |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥12MPa |
| Breakdown elongation |
ASTM D2671 |
≥300% |
| Density |
ASTM D2671 |
1.46g/cm3 |
| Low temperature flexibility at -40℃ for 4hrs |
ASTM D2671 |
No cracking |
| Heat shock at 200℃ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Volume resistivity |
IEC 93 |
≥1011Ω.cm |
| Dielectric constant |
IEC 250 |
≥19 |
| Water absorption at 23℃ for 336hrs |
ASTM D570 |
≤1% |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)≥ |
Wall
Thickness(mm) |
I.D.(mm)≤ |
Wall
Thickness(mm) |
| ST10-16/8 |
16 |
0.98 |
8 |
1.80 |
20 |
| ST10-20/10 |
20 |
0.97 |
10 |
1.80 |
20 |
| ST10-25/10 |
25 |
0.89 |
10 |
2.00 |
1.22 |
| ST10-26/12 |
26 |
1.08 |
12 |
2.15 |
1.22 |
| ST10-30/12 |
30 |
0.95 |
12 |
2.15 |
1.22 |
| ST10-35/14 |
35 |
0.94 |
14 |
2.15 |
1.22 |
| ST10-40/16 |
40 |
0.93 |
16 |
2.15 |
1.22 |
| ST10-45/18 |
45 |
0.97 |
18 |
2.25 |
1.22 |
| ST10-50/20 |
50 |
0.96 |
20 |
2.25 |
1.22 |
| ST10-60/23 |
60 |
1.03 |
23 |
2.50 |
1.22 |
| ST10-65/25 |
65 |
1.03 |
25 |
2.50 |
1.22 |
| ST10-70/23 |
70 |
0.89 |
23 |
2.50 |
1.22 |
| ST10-95/38 |
95 |
1.04 |
38 |
2.50 |
1.22 |
Ordering
★Product Code★Quantity★Package
Thank you for your order and Write accurately |
