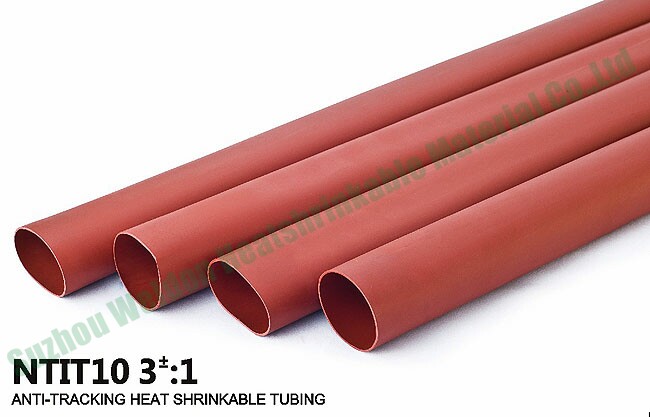

| NON-TRACKING HEAT SHRINK TUBING【NTIT10】 |
|
| Non-tracking heat shrinkable tubing made of radiation cross-linked polyolefin and silicone rubber for power termination insulation. |
Features and Benefits
★Effectively disperse the heat generated by the cable connection.
★Complete specifications.
★Products relatively soft, easy to install
Shrink physical properties
★Operating Temperature: -55℃ to 105℃
★Shrink Temperature: 125℃ |
Color selection
★Black, red
Product Code Cross References
★DSG CANUSA : CNIT
★SUMITOMO: SCT100
★RAYCHEM/TYCO: HVOT |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥10MPa |
| Breakdown elongation |
ASTM D2671 |
≥350% |
| Water absorption |
ASTM D570 |
≤0.5% |
| Heat shock (200℃/30min) |
ASTM D2671 |
NO DROP/NO FLOW |
| Low temperature flexibility(-40℃/4hrs) |
ASTM D2671 |
NO CRACKING |
| Dielectric strength |
ASTM D2671 |
≥15KV/MM |
| Flame retardant |
ASTM D2863 |
≥28 |
| Accelerated aging 68hrs at 136℃ |
Tensile strength |
ASTM D2671 |
≥8MPa |
| Breakdown elongation |
ASTM D570 |
≤0.5% |
| Anti-tracking |
2.5kv/1h |
ASTM D2303 |
PASS |
| 2.75kv/1h |
ASTM D2303 |
PASS |
| 3.0kv/1h |
ASTM D2303 |
PASS |
| 3.25kv/1h |
ASTM D2303 |
PASS |
Product Selection-L
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)≥ |
Wall
Thickness(mm) |
I.D.(mm)≤ |
Wall
Thickness(mm) |
| NTIT10L-19/6 |
19 |
1.01 |
6 |
2.50 |
15 |
| NTIT10L-20/8 |
20 |
1.47 |
8 |
2.50 |
15 |
| NTIT10L-30/10 |
30 |
1.21 |
10 |
3.00 |
15 |
| NTIT10L-35/12 |
35 |
1.21 |
12 |
3.00 |
15 |
| NTIT10L-40/16 |
40 |
1.35 |
16 |
3.00 |
15 |
| NTIT10L-45/18 |
45 |
1.33 |
18 |
3.00 |
15 |
| NTIT10L-54/24 |
54 |
1.44 |
24 |
3.00 |
15 |
| NTIT10L-60/29 |
60 |
1.54 |
29 |
3.00 |
15 |
| NTIT10L-76/38 |
76 |
1.57 |
38 |
3.00 |
15 |
| NTIT10L-100/49 |
100 |
1.52 |
49 |
3.00 |
15 |
The wall thickness of NTIT10L series before shrink is ±0.05mm.
Product Selection-D
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
| I.D.(mm)≥ |
Wall
Thickness(mm) |
I.D.(mm)≤ |
Wall
Thickness(mm) |
| NTIT10D-19/6 |
19 |
1.01 |
6 |
2.50 |
1.22max |
| NTIT10D-20/8 |
20 |
1.18 |
8 |
2.50 |
1.22max |
| NTIT10D-30/10 |
30 |
1.21 |
10 |
3.00 |
1.22max |
| NTIT10D-35/12 |
35 |
1.21 |
12 |
3.00 |
1.22max |
| NTIT10D-40/16 |
40 |
1.35 |
16 |
3.00 |
1.22max |
| NTIT10D-45/18 |
45 |
1.33 |
18 |
3.00 |
1.22max |
| NTIT10D-50/20 |
50 |
1.32 |
20 |
3.00 |
1.22max |
| NTIT10D-60/25 |
60 |
1.35 |
25 |
3.00 |
1.22max |
| NTIT10D-75/30 |
75 |
1.28 |
30 |
3.00 |
1.22max |
| NTIT10D-100/40 |
100 |
1.21 |
40 |
3.00 |
1.22max |
Remark
L:CONTINUOUS
D:SINGLE
Ordering
★Product Code★Quantity★Package
Thank you for your order and Write accurately |
