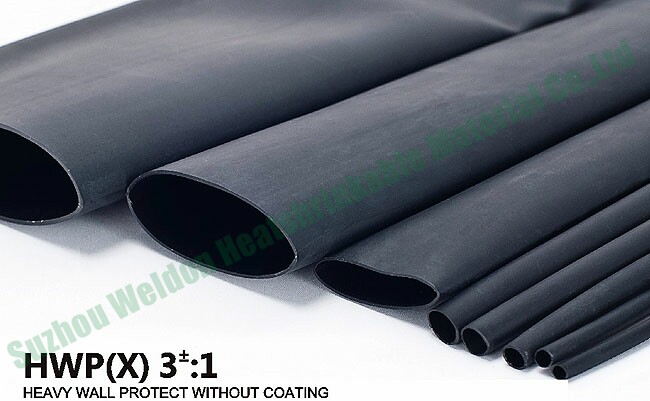

| HEAVY WALL PRETECT WITHOUT COATING【HWP(X)】 |
|
| Heavy wall heat shrinkable tubing with radiation cross-linked polyolefin outer layer for excellent insulation, corrosion prevention for insulation |
Features and Benefits
★Insulation and environmental protection of cable joins.
★Other applications where require insulation and protection, sealing or cable jacking.
★Abrasion resistant.
★High weather resistance
★RoHS compliant, halogen free. |
Shrink physical properties
★Operating Temperature: -55℃ to 105℃
★Shrink Temperature: 105℃ to 135℃
Color selection
★Black, oxide red, transparent, or other colors |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥12MPa |
| Breakdown elongation |
ASTM D2671 |
≥450% |
| Specific gravity |
ASTM D 792 |
1.15 |
| After aging |
Tensile strength |
ASTM D2671 |
≥12MPa |
| Breakdown elongation |
≥350% |
| Flammability |
ASTM D2863 |
≥28/0 |
| Hardness (Shore D) |
ASTM D2240 |
60D |
| Heat shock at 200℃ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Dielectric strength |
ASTM D2671 |
≥20KV/MM |
| Water absorption at 23℃ for 336hrs |
ASTM D570 |
≤0.5% |
| Low temperature flexibility at -40℃ for 4hrs |
ASTM D2671 |
No cracking |
| Fungus resistance |
ASTM G21 |
NO growth |
| Copper corrosion |
ASTM D2671 |
NO corrosion |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
I.D.(mm)
≥ |
Wall
Thickness(mm) |
I.D.(mm)
≤ |
Wall
Thickness(mm) |
| HWP(X)-9/3 |
9 |
0.98 |
3 |
2.50 |
1,1.22M |
| HWP(X)-12/4 |
12 |
1.15 |
4 |
2.50 |
1,1.22M |
| HWP(X)-16/5 |
16 |
1.04 |
5 |
2.50 |
1,1.22M |
| HWP(X)-19/6 |
19 |
1.27 |
6 |
3.00 |
1,1.22M |
| HWP(X)-22/6 |
22 |
1.12 |
6 |
3.00 |
1,1.22M |
| HWP(X)-25/8 |
25 |
1.21 |
8 |
3.00 |
1,1.22M |
| HWP(X)-28/6 |
28 |
0.90 |
6 |
3.00 |
1,1.22M |
| HWP(X)-33/8 |
33 |
0.94 |
8 |
3.00 |
1,1.22M |
| HWP(X)-35/12 |
35 |
1.21 |
12 |
3.00 |
1,1.22M |
| HWP(X)-40/12 |
40 |
1.28 |
12 |
3.50 |
1,1.22M |
| HWP(X)-45/13 |
45 |
1.22 |
13 |
3.50 |
1,1.22M |
| HWP(X)-55/16 |
55 |
1.27 |
16 |
3.70 |
1,1.22M |
| HWP(X)-65/19 |
65 |
1.25 |
19 |
3.70 |
1,1.22M |
| HWP(X)-75/22 |
75 |
1.23 |
22 |
3.70 |
1,1.22M |
| HWP(X)-85/25 |
85 |
1.22 |
25 |
3.70 |
1,1.22M |
| HWP(X)-95/25 |
95 |
1.19 |
25 |
4.00 |
1,1.22M |
| HWP(X)-100/30 |
100 |
1.28 |
30 |
4.00 |
1,1.22M |
| HWP(X)-115/34 |
115 |
1.23 |
34 |
3.80 |
1,1.22M |
| HWP(X)-130/36 |
130 |
1.21 |
36 |
4.00 |
1,1.22M |
| HWP(X)-140/42 |
140 |
1.29 |
42 |
4.00 |
1,1.22M |
| HWP(X)-160/50 |
160 |
1.22 |
50 |
3.70 |
1,1.22M |
| HWP(X)-175/58 |
175 |
1.21 |
58 |
3.50 |
1,1.22M |
| HWP(X)-200/62 |
200 |
1.27 |
62 |
4.00 |
1,1.22M |
| HWP(X)-230/68 |
230 |
1.24 |
68 |
4.00 |
1,1.22M |
| HWP(X)-260/68 |
260 |
1.24 |
68 |
4.50 |
1,1.22M |
| HWP(X)-300/70 |
300 |
1.22 |
70 |
5.00 |
1,1.22M |
| HWP(X)-350/70 |
350 |
1.23 |
70 |
5.50 |
1,1.22M |
Remark
X: (y) means flame, (n) means no flame
Ordering
★Product Code★Quantity★Package |
