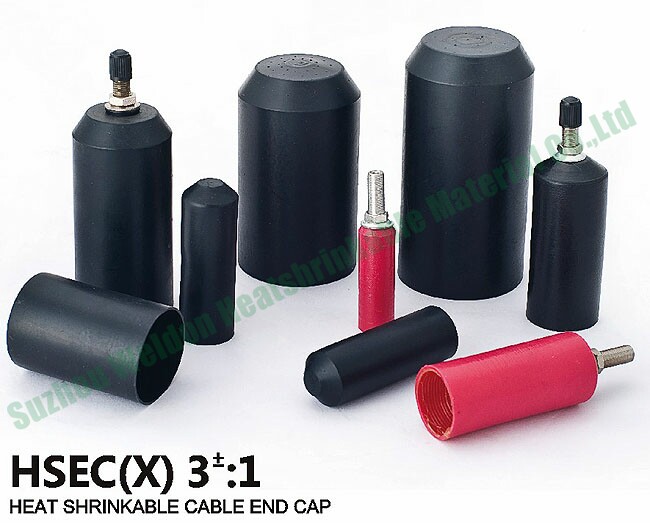

| HEAT SHRINK CABLE END CAP【HSEC(X)】 |
|
| Heat shrinkable cable end cap with adhesive liner, commonly used for insulation and sealing of cable end |
Features and Benefits
★Adhesive liner for extra insulation and sealing against moisture
★Compatible with lead cables and polyethylene jacketed cables
★Not applicable to gas-filled air tight cable
★Also available without adhesive liner. |
Shrink physical properties
★Operating Temperature: -55℃ to 125℃
★Shrink Temperature: 125℃
Color selection
★Black, Red
Product Code Cross References
★RAYCHEM/TYCO: SSC/ESC
★DSG CANUSA: CEC |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥12MPa |
| Thermal endurance |
IEC 216 |
-55℃ to 125℃ |
| Breakdown elongation |
ASTM D2671 |
≥400% |
| Density |
ASTM D2671 |
1.20g/cm3 |
Accelerated aging
at 136℃ for 168hrs |
Tensile strength |
ASTM D2671 |
≥10MPa |
| Breakdown elongation |
≥300% |
| Low temperature flexibility at -40℃ for 4hrs |
ASTM D2671 |
No cracking |
| Heat shock at 200℃ for 4hrs |
ASTM D2671 |
No drop/No flow |
| Volume resistivity |
ASTM D2671 |
≥1014Ω.cm |
| Water absorption at 23℃ for 336hrs |
ASTM D570 |
≤0.5% |
| Dielectric strength |
ASTM D2671 |
≥18KV/MM |
Product Selection
Product
code |
Before Shrink |
After Shrink |
| D.(mm)≤ |
L(mm) |
A(mm) |
D.(mm)≤ |
Dw(mm) |
| HSEC(X)-12/4 |
12 |
40 |
15 |
4 |
2.6 |
| HSEC(X)-14/5 |
15 |
45 |
18 |
5 |
2.2 |
| HSEC(X)-20/6 |
20 |
55 |
25 |
6 |
2.8 |
| HSEC(X)-25/8 |
25 |
65 |
30 |
8 |
2.8 |
| HSEC(X)-35/16 |
35 |
80 |
35 |
16 |
3.3 |
| HSEC(X)-40/15 |
40 |
90 |
40 |
15 |
3.3 |
| HSEC(X)-55/25 |
55 |
100 |
50 |
25 |
3.5 |
| HSEC(X)-75/35 |
75 |
120 |
55 |
35 |
4.0 |
| HSEC(X)-100/50 |
100 |
140 |
70 |
50 |
4.0 |
| HSEC(X)-120/60 |
120 |
150 |
70 |
60 |
4.0 |
| HSEC(X)-140/60 |
140 |
150 |
70 |
60 |
4.0 |
| HSEC(X)-160/80 |
160 |
150 |
70 |
80 |
4.0 |
| HSEC(X)-200/90 |
200 |
160 |
70 |
90 |
4.2 |
Remark
X means
SEMI-CONDUCTIVE (S)
INSULATIONG (I)
Ordering
★Product Code★Quantity★Package
