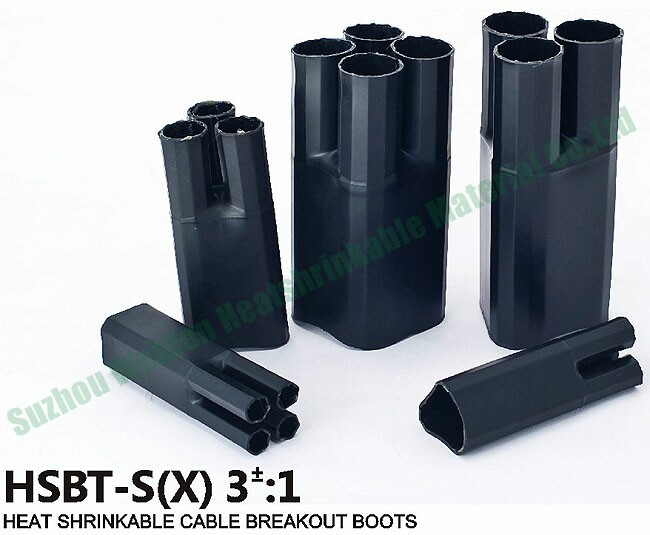

| HEAT SHRINKABLE CABLE BREAKOUT BOOTS¡¾HSBT-S(X)¡¿ |
|
| HSBT using semi-conductive material or an insulating material injection, special production process expansion made£¬big endian and finger using hot melt adhesive coating on the cable branch parts played insulation, water-proof£¬moisture, seal, generated during the installation of the cable breath and debris have isolated effect. |
Features and Benefits
¡ïProduct is used in 10KV voltage class
¡ïHas good insulating properties or semi-conductive
¡ïResistance to environmental characteristics of a good
¡ïGood sealing effect
¡ïOperation is relatively simple |
Shrink physical properties
¡ïOperating Temperature: -40¡æ to 125¡æ
¡ïShrink Temperature: 105¡æ to 135¡æ
Color selection
¡ïRed ¡ïblack |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
¡Ý15MPa |
| Breakdown elongation |
ASTM D2671 |
¡Ý500% |
Accelerated aging
at 136¡æ for 168hrs |
Tensile strength |
ASTM D2671 |
¡Ý12MPa |
| Breakdown elongation |
¡Ý350% |
| Dielectric strength |
ASTM D2671 |
¡Ý20kv/mm(I) |
| Tracking resistance |
ASTM D2303 |
pass |
| Volume resistance |
ASTM D2671 |
¡Ý105¦¸.cm(S) ¡Ý1014¦¸.cm(S) |
| Cold bend (-55¡æ/4hrs) |
ASTM D2671 |
NON CRACKING |
Product Selection
HSBT-S(X)
Product
Code |
BEFORE SHRINK |
AFTER SHRINK |
Cable
Specifications
Mm2 |
Big
§¶(mm) |
L
(mm) |
Finger
§¶(mm) |
L
(mm) |
Big
§¶(mm) |
L
(mm) |
Finger
§¶(mm) |
L
(mm) |
H
(mm) |
| HSBT3-S(X)-51/16 |
51 |
95 |
24 |
52 |
16 |
108 |
7 |
50 |
3 |
10-16 |
| HSBT3-S(X)-70/32 |
70 |
115 |
32 |
68 |
32 |
128 |
10 |
63 |
3 |
25-50 |
| HSBT3-S(X)-86/45 |
86 |
115 |
38 |
66 |
45 |
130 |
14 |
65 |
3 |
70-120 |
| HSBT3-S(X)-102/60 |
102 |
120 |
48 |
75 |
60 |
133 |
18 |
73 |
3 |
150-240 |
| HSBT3-S(X)-130/70 |
130 |
130 |
60 |
85 |
70 |
143 |
25 |
83 |
3.5 |
300-500 |
| HSBT4-S(X)-34/20 |
34 |
80 |
13 |
52 |
20 |
95 |
4 |
54 |
3 |
10-16 |
| HSBT4-S(X)-48/22 |
48 |
83 |
18 |
49 |
22 |
98 |
4 |
48 |
3 |
25-50 |
| HSBT4-S(X)-62/30 |
62 |
103 |
27 |
59 |
30 |
120 |
7 |
60 |
3 |
70-120 |
| HSBT4-S(X)-72/36 |
72 |
110 |
31 |
69 |
36 |
125 |
9 |
66 |
3 |
150-240 |
| HSBT5-S(X)-35/23 |
35 |
80 |
11 |
50 |
23 |
85 |
5 |
45 |
3 |
10-16 |
| HSBT5-S(X)-56/29 |
56 |
89 |
15 |
55 |
29 |
96 |
5 |
58 |
3 |
25-50 |
| HSBT5-S(X)-84/36 |
84 |
110 |
26 |
68 |
36 |
123 |
8 |
65 |
3 |
70-120 |
| HSBT5-S(X)-95/46 |
95 |
116 |
33 |
78 |
46 |
125 |
11 |
75 |
3 |
150-240 |
HSBT-D(X)
Product
Code |
BEFORE SHRINK |
AFTER SHRINK |
Cable Specifications
Mm2 |
Big
§¶(mm) |
Finger
§¶(mm) |
Big
§¶(mm) |
H
(mm) |
Finger
§¶(mm) |
H
(mm) |
Total-L
(mm) |
| HSBT2-D(X)-30/14 |
30 |
12 |
14 |
2.6 |
4.5 |
2.2 |
93 |
4-25 |
| HSBT3-D(X)-36/15 |
36 |
16 |
15 |
2.1 |
4.5 |
2.1 |
110 |
4-35 |
| HSBT3-D(X)-60/25 |
60 |
25 |
25 |
3.0 |
8.0 |
2.5 |
165 |
50-150 |
| HSBT3-D(X)-80/35 |
80 |
38 |
35 |
3.5 |
11.0 |
3.5 |
185 |
50-150 |
| HSBT3-D(X)-95/30 |
95 |
44 |
30 |
3.5 |
13.0 |
2.5 |
205 |
185-300 |
| HSBT3-D(X)-110/46 |
110 |
50 |
46 |
4.0 |
17.5 |
4.0 |
260 |
185-300 |
| HSBT3-D(X)-125/55 |
125 |
57 |
55 |
4.0 |
20.0 |
4.0 |
260 |
185-300 |
| HSBT3-D(X)-170/75 |
170 |
77 |
75 |
4.0 |
28.0 |
4.0 |
280 |
185-300 |
| HSBT4-D(X)-40/14 |
40 |
15 |
14 |
2.2 |
3.5 |
2.0 |
105 |
4-35 |
| HSBT4-D(X)-55/20 |
55 |
21 |
20 |
3.1 |
5.0 |
2.6 |
150 |
35-70 |
| HSBT4-D(X)-65/26 |
65 |
26 |
26 |
3.3 |
7.0 |
2.9 |
175 |
70-150 |
| HSBT4-D(X)-100/38 |
100 |
47 |
38 |
4.0 |
12.0 |
3.0 |
198 |
185-300 |
| HSBT4-D(X)-160/64 |
160 |
70 |
64 |
4.0 |
19.0 |
4.0 |
260 |
185-300 | Ordering
¡ïProduct Code¡ïQuantity¡ïPackage Thank you for your order and Write accurately
Remark
X means
SEMI-CONDUCTIVE (S)
INSULATIONG (I)
¡°S¡± stands for standard,
¡°D¡± represents double the number of edges |
