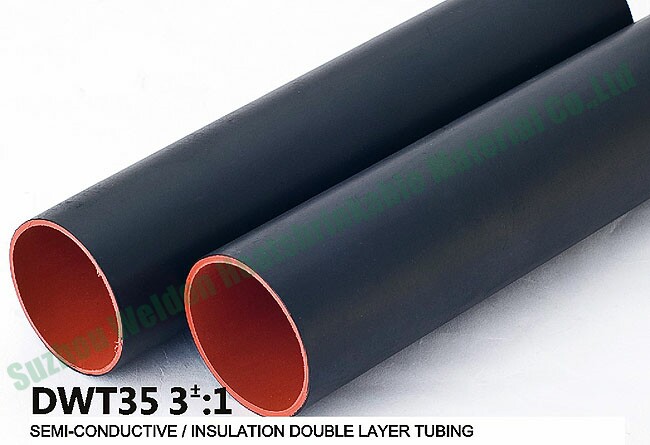

| SEMI-CONDUCTIVE / INSULATION DOUBLE LAYER TUBING¡¾DWT35¡¿ |
|
| DWT series of products using high-precision composite method, the semi-conductive layer and an insulating layer together, effectively avoid the construction works semi-conductive layer and the insulating layer generates breath, you can¡¯t play a good shielding effect, this series can be solved this problem. |
Features and Benefits
¡ïDual wall conducting /insulating
¡ïExtra heavy wall of insulation
¡ïCross-linked polyolefin
¡ïup to 36
¡ïCo-extrusion technology
¡ïExcellent electrical properties |
Shrink physical properties
¡ïOperating Temperature: -40¡æ to 130¡æ
¡ïShrink Temperature: 130¡æ
Color selection
¡ïBlack/Red |
Technical Details Technical parameters, please refer to CT10+and NTIT10+, meet the highest requirements of environmental protection and technology import and export (+)Means that you can hyperlink to a specific page
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
I.D.(mm)
¡Ý |
Wall
Thickness(mm) |
I.D.(mm)
¡Ü |
Wall
Thickness(mm) |
| DWT35-35/12 |
35 |
2.0 |
12 |
6.0 |
1.22 |
| DWT35-45/15 |
45 |
2.0 |
15 |
6.0 |
1.22 |
| DWT35-55/18 |
55 |
2.0 |
18 |
6.0 |
1.22 |
| DWT35-65/25 |
65 |
2.0 |
25 |
6.0 |
1.22 |
| DWT35-85/30 |
85 |
2.0 |
30 |
6.0 |
1.22 |
| DWT35-100/38 |
100 |
2.0 |
38 |
6.0 |
1.22 |
| DWT35-120/45 |
120 |
2.0 |
45 |
6.0 |
1.22 |
| DWT35-140/50 |
140 |
2.0 |
50 |
6.0 |
1.22 | Ordering
¡ïProduct Code
¡ïQuantity
¡ïPackage
Thank you for your order and Write accurately. |
