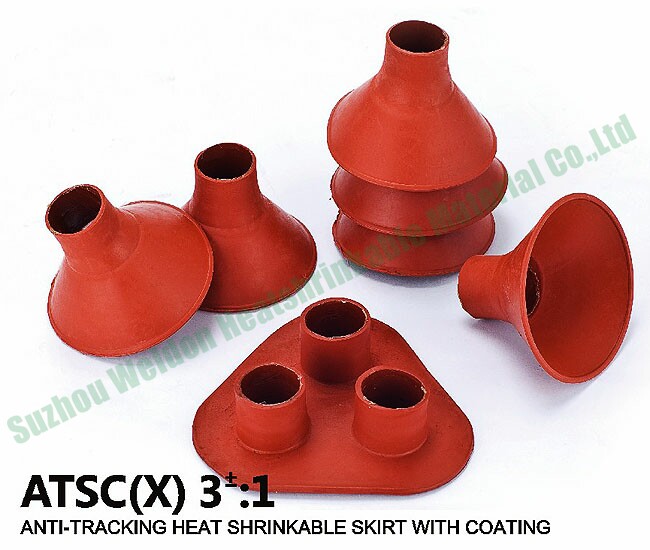

| ANTI-TRACK HEAT SHRINK SKIRT WITH COATING【ATSC-X】 |
|
| Ideal for insulation of power cable termination, used in voltage class 5-35kv. |
Features and Benefits
★Cross-linked polyolefin
★Non-tracking★
★Mastic applied to collars
★UV and weather resistance
★Min. full recovery temperature:110℃ |
Shrink physical properties
★Operating Temperature: -55℃ to 105℃
★Shrink Temperature: 105℃ to 135℃
Color selection
★Red ★Black
Product Code Cross References
★RAYCHEM/TYCO: 205 |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥12MPa |
| Breakdown elongation |
ASTM D2671 |
≥400% |
Accelerated aging
at 136℃ for 168hrs |
Tensile strength |
ASTM D2671 |
≥10MPa |
| Breakdown elongation |
≥300% |
| Dielectric strength |
ASTM D2671 |
≥15kv/mm |
| Tracking resistance |
ASTM D2303 |
pass |
| Volume resistance |
ASTM D2671 |
≥1014Ω.cm |
| Cold bend (-55℃/4hrs) |
ASTM D2671 |
NON CRACKING |
Product Selection
Product
Code |
Before Shrink |
After Shrink |
Skirt |
Column |
| D2.(mm)≥ |
D2.(mm)≥ |
W(mm) |
D1(mm) |
H(mm) |
| ATSC-1-30/13 |
30 |
13 |
3.0 |
95 |
31 |
| ATSC-1-35/13 |
35 |
12 |
3.0 |
95 |
31 |
| ATSC-1-45/19 |
45 |
19 |
3.8 |
120 |
41 |
| ATSC-1-50/19 |
50 |
19 |
3.8 |
120 |
41 |
| ATSC-1-60/23 |
60 |
23 |
3.8 |
130 |
39 |
| ATSC-1-75/30 |
75 |
30 |
3.8 |
140 |
43 | Ordering
★Product Code
★Quantity
★Package
Thank you for your order and
Write accurately.
Remark
X:
(1) means 1 hole,
(3)means 3 holes, |
