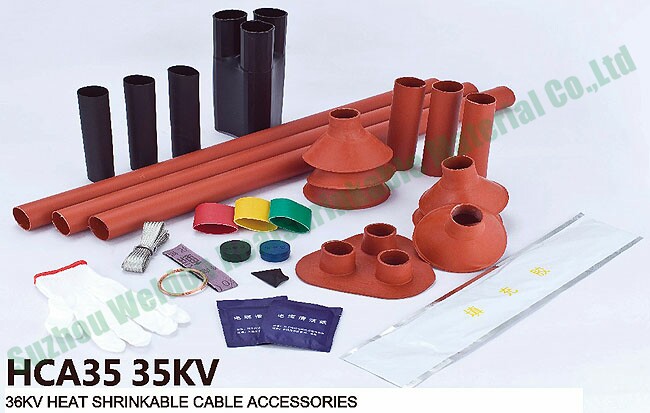

35KV HEAT SHRINKABLE CABLE ACCESSORIES¡¾HCA35¡¿

Heat shrinkable cable accessories for protection of indoor/outdoor electrical terminals joints under 1kv, widely used in electricity supply systems in oil refinery, metallurgy, railway, ports and other area where safety and reliability of electricity supply is vital for daily operation
Features and Benefits
¡ïSegmented cable will effectively connected together or connected to the terminal appliance
¡ïHas good insulation properties
¡ïEasy to install, easy to distinguish between cable types		 Shrink physical properties
¡ïOperating Temperature: -55¡æ to 105¡æ
¡ïShrink Temperature: 120¡æ to 140¡æ

Technical Details

Test Item Test Method Typical Value
Work frequency wet voltage withstand 35kv/1min No breakdown and no flashover
Work frequency long term voltage withstand 65kv/4hrs No breakdown and no flashover
Impact voltage withstand 250kv/10times No breakdown
D.C voltage withstand 156kv/15min No breakdown and no flashover
Part discharge (kv, pc) 39,¡Ü20 39,4

Product Selection

Product Code Name Product Code Name For Cable (Mm2)
NRSY35-3/1 3-cores indoor termination NRSY35-1/1 1-cores indoor termination 25-50
NRSY35-3/2 3-cores indoor termination NRSY35-1/2 1-cores indoor termination 70-120
NRSY35-3/3 3-cores indoor termination NRSY35-1/3 1-cores indoor termination 150-240
NRSY35-3/4 3-cores indoor termination NRSY35-1/4 1-cores indoor termination 300-400
WRSY35-3/1 3-cores outdoor termination WRSY35-1/1 1-cores outdoor termination 25-50
WRSY35-3/2 3-cores outdoor termination WRSY35-1/2 1-cores outdoor termination 70-120
WRSY35-3/3 3-cores outdoor termination WRSY35-1/3 1-cores outdoor termination 150-240
WRSY35-3/4 3-cores outdoor termination WRSY35-1/4 1-cores outdoor termination 300-400
JRSY35-3/1 3-cores outdoor joints JRSY35-1/1 1-cores outdoor joints 25-50
JRSY35-3/2 3-cores outdoor joints JRSY35-1/2 1-cores outdoor joints 70-120
JRSY35-3/3 3-cores outdoor joints JRSY35-1/3 1-cores outdoor joints 150-240
JRSY35-3/4 3-cores outdoor joints JRSY35-1/4 1-cores outdoor joints 300-400

Ordering
¡ïProduct Code¡ïQuantity¡ïPackage
Thank you for your order and Write accurately
