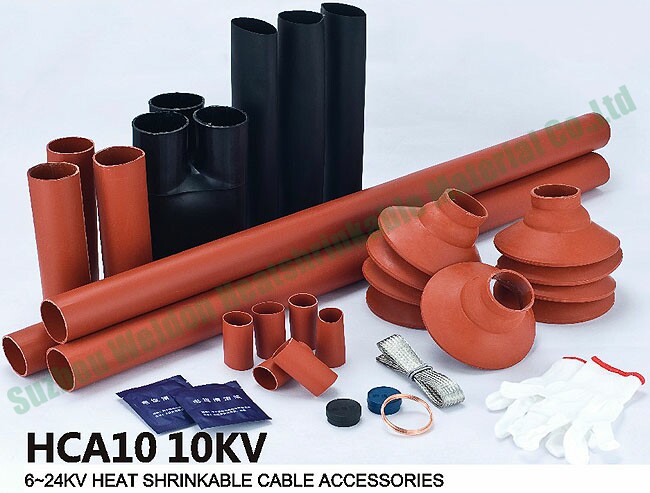

| 10KV HEAT SHRINKABLE CABLE ACCESSORIES¡¾HCA10¡¿ |
|
| Heat shrinkable cable accessories for protection of indoor/outdoor electrical terminals joints under 1kv, widely used in electricity supply systems in oil refinery, metallurgy, railway, ports and other area where safety and reliability of electricity supply is vital for daily operation |
Features and Benefits
¡ïSegmented cable will effectively connected together or connected to the terminal appliance
¡ïHas good insulation properties
¡ïEasy to install, easy to distinguish between cable types |
Shrink physical properties
¡ïOperating Temperature: -55¡æ to 105¡æ
¡ïShrink Temperature: 120¡æ to 140¡æ |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Work frequency dry voltage withstand |
45kv/1min |
No breakdown and no flashover |
| Work frequency wet voltage withstand |
45kv/1min |
No breakdown and no flashover |
| Work frequency long term voltage withstand |
35kv/4hrs |
No breakdown and no flashover |
| Impact voltage withstand |
105kv/10times |
No breakdown |
| D.C voltage withstand |
52kv/15min |
No breakdown and no flashover |
| Part discharge (kv, pc) |
13,¡Ü20 |
13,10 |
Product Selection
| Product Code |
Name |
For Cable(Mm2) |
| NRSY10-3/1 |
3-cores indoor XLPE termination |
25-50 |
| NRSY10-3/2 |
3-cores indoor XLPE termination |
70-120 |
| NRSY10-3/3 |
3-cores indoor XLPE termination |
150-240 |
| NRSY10-3/4 |
3-cores indoor XLPE termination |
300-400 |
| WRSY10-3/1 |
3-cores outdoor XLPE termination |
25-50 |
| WRSY10-3/2 |
3-cores outdoor XLPE termination |
70-120 |
| WRSY10-3/3 |
3-cores outdoor XLPE termination |
150-240 |
| WRSY10-3/4 |
3-cores outdoor XLPE termination |
300-400 |
| JRSY10-3/1 |
3-cores outdoor XLPE joints |
25-50 |
| JRSY10-3/2 |
3-cores outdoor XLPE joints |
70-120 |
| JRSY10-3/3 |
3-cores outdoor XLPE joints |
150-240 |
| JRSY10-3/4 |
3-cores outdoor XLPE joints |
300-400 |
| Product Code |
Name |
For Cable (Mm2) |
| NRSY10-1/1 |
1-cores indoor XLPE termination |
25-50 |
| NRSY10-1/2 |
1-cores indoor XLPE termination |
70-120 |
| NRSY10-1/3 |
1-cores indoor XLPE termination |
150-240 |
| NRSY10-1/4 |
1-cores indoor XLPE termination |
300-400 |
| WRSY10-1/1 |
1-cores outdoor XLPE termination |
25-50 |
| WRSY10-1/2 |
1-cores outdoor XLPE termination |
70-120 |
| WRSY10-1/3 |
1-cores outdoor XLPE termination |
150-240 |
| WRSY10-1/4 |
1-cores outdoor XLPE termination |
300-400 |
| JRSY10-1/1 |
1-cores outdoor XLPE joints |
25-50 |
| JRSY10-1/2 |
1-cores outdoor XLPE joints |
70-120 |
| JRSY10-1/3 |
1-cores outdoor XLPE joints |
150-240 |
| JRSY10-1/4 |
1-cores outdoor XLPE joints |
300-400 |
Ordering
¡ïProduct Code¡ïQuantity¡ïPackage
Thank you for your order and Write accurately |
