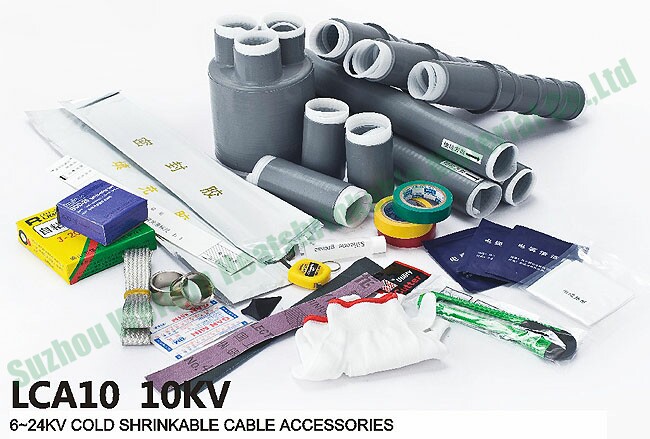

| 10KV COLD SHRINKABLE CABLE ACCESSORIES¡¾LCA10¡¿ |
|
| Cold shrink cable accessories are the use of liquid silicone rubber vulcanization molding injection factory, then by extension, lined with plastic spiral support form the various cable attachment parts, on-site insulation, the set of pre-defined expansion is processed at the end of the cable or connector service, taking the internal support plastic support bar, pressing in the cable insulation of cable attachments on the form. Because it is at room temperature by elastic recoil force, rather than shrink cable accessory to use heat shrink, so it is commonly known as heat shrink cable accessories |
Features and Benefits
¡ïSegmented cable will effectively connected together or connected to the terminal appliance
¡ïHas good insulation properties
¡ïEasy to install, easy to distinguish between cable types |
|
Technical Details
| Test Item |
Test Method |
Typical Value |
| Work frequency dry voltage withstand |
45kv/1min |
No breakdown and no flashover |
| Work frequency wet voltage withstand |
45kv/1min |
No breakdown and no flashover |
| Work frequency long term voltage withstand |
35kv/4hrs |
No breakdown and no flashover |
| Impact voltage withstand |
105kv/10times |
No breakdown |
| D.C voltage withstand |
52kv/15min |
No breakdown and no flashover |
| Part discharge (kv, pc) |
13,¡Ü20 |
13,10 |
Product Selection
| Product Code |
Name |
For Cable (Mm2) |
| NLSY10-3/1 |
3-cores indoor XLPE termination |
25-50 |
| NLSY10-3/2 |
3-cores indoor XLPE termination |
70-120 |
| NLSY10-3/3 |
3-cores indoor XLPE termination |
150-240 |
| NLSY10-3/4 |
3-cores indoor XLPE termination |
300-400 |
| WLSY10-3/1 |
3-cores outdoor XLPE termination |
25-50 |
| WLSY10-3/2 |
3-cores outdoor XLPE termination |
70-120 |
| WLSY10-3/3 |
3-cores outdoor XLPE termination |
150-240 |
| WLSY10-3/4 |
3-cores outdoor XLPE termination |
300-400 |
| JLSY10-3/1 |
3-cores outdoor XLPE joints |
25-50 |
| JLSY10-3/2 |
3-cores outdoor XLPE joints |
70-120 |
| JLSY10-3/3 |
3-cores outdoor XLPE joints |
150-240 |
| JLSY10-3/4 |
3-cores outdoor XLPE joints |
300-400 |
| Product Code |
Name |
For Cable (Mm2) |
| NLSY10-1/1 |
1-cores indoor XLPE termination |
25-50 |
| NLSY10-1/2 |
1-cores indoor XLPE termination |
70-120 |
| NLSY10-1/3 |
1-cores indoor XLPE termination |
150-240 |
| NLSY10-1/4 |
1-cores indoor XLPE termination |
300-400 |
| WLSY10-1/1 |
1-cores outdoor XLPE termination |
25-50 |
| WLSY10-1/2 |
1-cores outdoor XLPE termination |
70-120 |
| WLSY10-1/3 |
1-cores outdoor XLPE termination |
150-240 |
| WLSY10-1/4 |
1-cores outdoor XLPE termination |
300-400 |
| JLSY10-1/1 |
1-cores outdoor XLPE joints |
25-50 |
| JLSY10-1/2 |
1-cores outdoor XLPE joints |
70-120 |
| JLSY10-1/3 |
1-cores outdoor XLPE joints |
150-240 |
| JLSY10-1/4 |
1-cores outdoor XLPE joints |
300-400 | Ordering
¡ïProduct Code¡ïQuantity¡ïPackage
Thank you for your order and Write accurately |
