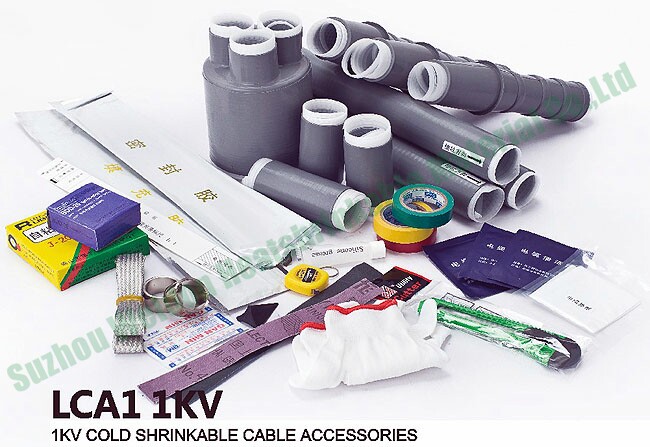

| 1KV COLD SHRINKABLE CABLE ACCESSORIES¡¾LCA1¡¿ |
|
| Cold shrink cable accessories are the use of liquid silicone rubber vulcanization molding injection factory, then by extension, lined with plastic spiral support form the various cable attachment parts, on-site insulation, the set of pre-defined expansion is processed at the end of the cable or connector service, taking the internal support plastic support bar, pressing in the cable insulation of cable attachments on the form. Because it is at room temperature by elastic recoil force, rather than shrink cable accessory to use heat shrink, so it is commonly known as heat shrink cable accessories |
Features and Benefits
¡ïSegmented cable will effectively connected together or connected to the terminal appliance
¡ïHas good insulation properties
¡ïEasy to install, easy to distinguish between cable types |
|
Technical Details
| Test Item |
Test Method |
Typical Value |
| Work frequency voltage withstand |
4kv/1min |
No breakdown and no flashover |
| Load cycling(3 times) |
5hrs heating 3hrs heating |
2.4kv/4hrs No breakdown and no flashover |
| Work frequency voltage withstand |
2.4kv/4hrs |
No breakdown and no flashover |
Product Selection
| Product Code |
Name |
For Cable
Mm2 |
Product Code |
Name |
For Cable
Mm2 |
| TLSY01-1/0 |
1-cores terminations |
10-16 |
JLSY01-1/0 |
1-cores joints |
10-16 |
| TLSY01-1/1 |
1-cores terminations |
25-50 |
JLSY01-1/1 |
1-cores joints |
25-50 |
| TLSY01-1/2 |
1-cores terminations |
70-120 |
JLSY01-1/2 |
1-cores joints |
70-120 |
| TLSY01-1/3 |
1-cores terminations |
150-240 |
JLSY01-1/3 |
1-cores joints |
150-240 |
| TLSY01-1/4 |
1-cores terminations |
300-400 |
JLSY01-1/4 |
1-cores joints |
300-400 |
| TLSY01-2/0 |
2-cores terminations |
10-16 |
JLSY01-2/0 |
2-cores joints |
10-16 |
| TLSY01-2/1 |
2-cores terminations |
25-50 |
JLSY01-2/1 |
2-cores joints |
25-50 |
| TLSY01-2/2 |
2-cores terminations |
70-120 |
JLSY01-2/2 |
2-cores joints |
70-120 |
| TLSY01-2/3 |
2-cores terminations |
150-240 |
JLSY01-2/3 |
2-cores joints |
150-240 |
| TLSY01-2/4 |
2-cores terminations |
300-400 |
JLSY01-2/4 |
2-cores joints |
300-400 |
| TLSY01-3/0 |
3-cores terminations |
10-16 |
JLSY01-3/0 |
3-cores joints |
10-16 |
| TLSY01-3/1 |
3-cores terminations |
25-50 |
JLSY01-3/1 |
3-cores joints |
25-50 |
| TLSY01-3/2 |
3-cores terminations |
70-120 |
JLSY01-3/2 |
3-cores joints |
70-120 |
| TLSY01-3/3 |
3-cores terminations |
150-240 |
JLSY01-3/3 |
3-cores joints |
150-240 |
| TLSY01-3/4 |
3-cores terminations |
300-400 |
JLSY01-3/4 |
3-cores joints |
300-400 |
| TLSY01-4/0 |
4-cores terminations |
10-16 |
JLSY01-4/0 |
4-cores joints |
10-16 |
| TLSY01-4/1 |
4-cores terminations |
25-50 |
JLSY01-4/1 |
4-cores joints |
25-50 |
| TLSY01-4/2 |
4-cores terminations |
70-120 |
JLSY01-4/2 |
4-cores joints |
70-120 |
| TLSY01-4/3 |
4-cores terminations |
150-240 |
JLSY01-4/3 |
4-cores joints |
150-240 |
| TLSY01-4/4 |
4-cores terminations |
300-400 |
JLSY01-4/4 |
4-cores joints |
300-400 |
| TLSY01-5/0 |
5-cores terminations |
10-16 |
JLSY01-5/0 |
5-cores joints |
10-16 |
| TLSY01-5/1 |
5-cores terminations |
25-50 |
JLSY01-5/1 |
5-cores joints |
25-50 |
| TLSY01-5/2 |
5-cores terminations |
70-120 |
JLSY01-5/2 |
5-cores joints |
70-120 |
| TLSY01-5/3 |
5-cores terminations |
150-240 |
JLSY01-5/3 |
5-cores joints |
150-240 |
| TLSY01-5/4 |
5-cores terminations |
300-400 |
JLSY01-5/4 |
5-cores joints |
300-400 | |
