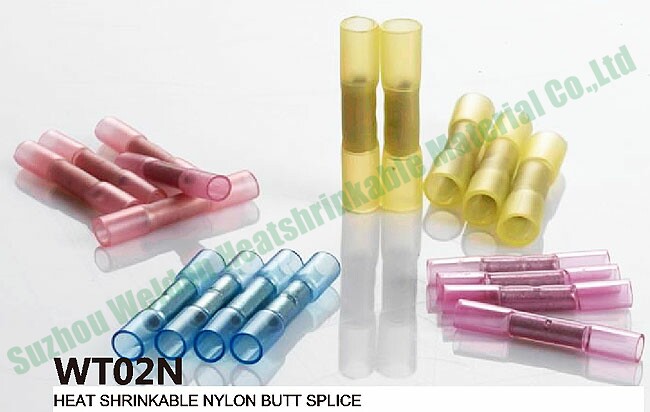

| HEAT SHRINK NYLON BUTT SPLICE【WT02N】 |
|
| Dual wall heat shrinkable tubing with HDPE outer layer and hot-melt adhesive inner layer seals and protects against water and other contaminants. Application includes wire connections, repairs and maintenance in automotive/trucking, marine electronics and other heavy machinery |
Features and Benefits
★nylon-based outer layer provides strong protection against abrasion and other mechanical damages.
★The inner hot-melt adhesive liner seals and protects against water, moisture and other contaminants.
★Rohs compliant halogen free, environmentally friendly.
★the transparent outer layer provides easy inspection of the finished splice
★three colors(red, blue and yellow)available for easy identification |
Shrink physical properties
★Operating Temperature: -55℃ to 125℃
★Shrink Temperature: 150℃ to 200℃
Color selection
★red, yellow, blue
Product Code Cross References
★Raychem/Tyco: DURASEAL |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
≥300Mpa |
| Breakdown elongation |
ASTM D2671 |
≥400% |
| Tensile strength after aging |
ASTM D2671 |
≥35Mpa |
| Breakdown elongation after aging |
ASTM D2671 |
≥300% |
| Specific gravity |
ASTM D792 |
1.05g/cm3 |
| Water absorption |
ASTM D570 |
2-3% |
| Heat shock(200℃ for 4 hrs) |
ASTM D2671 |
Out layer no drop/no flow |
| Low temperature flexibility(-55℃ for 4 hrs) |
ASTM D2671 |
No cracking |
| Dielectric strength |
ASTM D2671 |
≥20KV/mm |
| Copper corrosion |
UL 224/ASTM D2671 |
Non-corrosive |
| Volume resistivity |
ASTM D2671 |
≥1014Ω.CM |
Product Selection
| Product Code |
color |
Diameter before shrink Ф(mm) |
Wire size |
| AWG |
Mm2 |
| WT02(N)-1 |
RED |
4.3 |
22-18 |
0.5-1.0 |
| WT02(N)-2 |
BLUE |
5.2 |
16-14 |
1.5-2.5 |
| WT02(N)-3 |
YELLOW |
6.4 |
12-10 |
4-6 |
Ordering
★Product Code★Quantity★Package
Thank you for your order and Write accurately |
