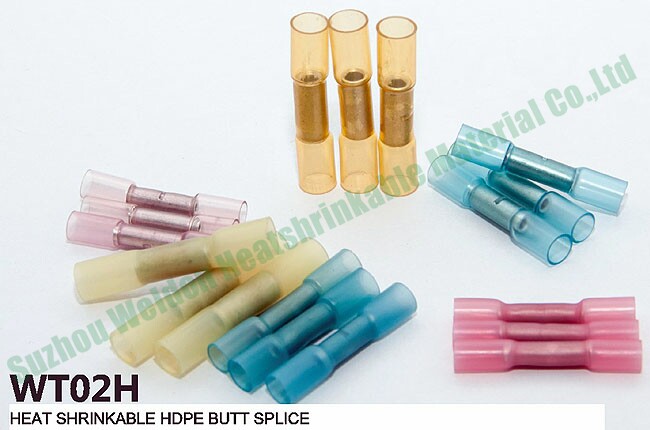

| HEAT SHRINK HDPE BUTT SPLICE¡¾WT02H¡¿ |
|
| Dual wall heat shrinkable tubing with HDPE outer layer and hot-melt adhesive inner layer seals and protects against water and other contaminants. Application includes wire connections, repairs and maintenance in automotive/trucking, marine electronics and other heavy machinery |
Features and Benefits
¡ïHDPE-based outer layer provides strong protection against abrasion and other mechanical damages.
¡ïThe inner hot-melt adhesive liner seals and protects against water, moisture and other contaminants.
¡ïRohs compliant halogen free, environmentally friendly.
¡ïthe transparent outer layer provides easy inspection of the finished splice
¡ïthree colors(red, blue and yellow)available for easy identification |
Shrink physical properties
¡ïOperating Temperature: -55¡æ to 125¡æ
¡ïShrink Temperature: 150¡æ to 200¡æ
Color selection
¡ïred, yellow, blue
Product Code Cross References
¡ïDSG Canusa: CRIMPSEAL II |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
¡Ý25Mpa |
| Breakdown elongation |
ASTM D2671 |
¡Ý400% |
| Tensile strength after aging |
ASTM D2671 |
¡Ý25Mpa |
| Breakdown elongation after aging |
ASTM D2671 |
¡Ý300% |
| Specific gravity |
ASTM D792 |
0.95g/cm3 |
| Water absorption |
ASTM D570 |
¡Ü0.5% |
| Heat shock(200¡æ for 4 hrs) |
ASTM D2671 |
Out layer no drop/no flow |
| Low temperature flexibility(-55¡æ for 4 hrs) |
ASTM D2671 |
No cracking |
| Dielectric strength |
ASTM D2671 |
¡Ý20KV/mm |
| Copper corrosion |
UL 224/ASTM D2671 |
Non-corrosive |
| Volume resistivity |
ASTM D2671 |
¡Ý1014¦¸.CM |
Product Selection
HEAT SHRINK CONNECTOR DIMENSIONS
| Product Code |
color |
Diameter before shrink §¶(mm) |
Wire size |
| AWG |
Mm2 |
| WT02(H)-1 |
RED |
4.3 |
22-18 |
0.5-1.0 |
| WT02(H)-2 |
BLUE |
5.2 |
16-14 |
1.5-2.5 |
| WT02(H)-3 |
YELLOW |
6.4 |
12-10 |
4-6 |
Ordering
¡ïProduct Code¡ïQuantity¡ïPackage
Thank you for your order and Write accurately |
