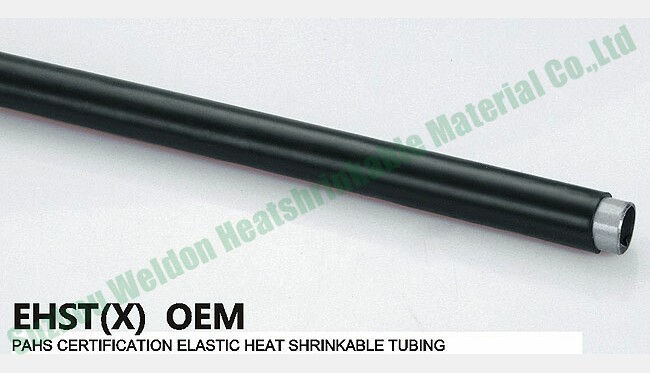

| PAHS CERTIFICATION ELASTIC HEAT SHRINKABLE TUBE¡¾EHST(X)¡¿ |
|
| Products through the German TUV testing center PAHS testing and through, can be exported to the world, with anti-corrosion, anti-aging, soft, flexible, easy to bend and other characteristics, mainly used in direct contact with the body parts of the insulation, protection, not with the body any side effects contact area. |
Features and Benefits
¡ïanti-corrosion
¡ïanti-aging
¡ïsoft
¡ïflexible
¡ïeasy to bend |
Shrink physical properties
¡ïOperating Temperature: -40¡æ to 125¡æ
¡ïShrink Temperature: 105¡æ to 135¡æ
Color selection
¡ïBright black ¡ïMatt black |
Technical Details
| Test Item |
Test Method |
Typical Value |
| Tensile strength |
ASTM D2671 |
¡Ý25MPa |
| Breakdown elongation |
ASTM D2671 |
¡Ý650% |
Accelerated aging
at 136¡æ for 168hrs |
Tensile strength |
ASTM D2671 |
¡Ý20MPa |
| Breakdown elongation |
¡Ý500% |
| Dielectric strength |
ASTM D2671 |
¡Ý20kv/mm(I) |
| Tracking resistance |
ASTM D2303 |
pass |
| Volume resistance |
ASTM D2671 |
¡Ý1014¦¸.cm |
| Cold bend (-55¡æ/4hrs) |
ASTM D2671 |
NON CRACKING |
Product Selection
EHST-S(X)
Product
Code |
Before Shrink |
After Shrink |
Standard
Package
(m/roll) |
For pipes |
I.D.(mm)
¡Ý |
Wall
Thickness(mm) |
I.D.(mm)
¡Ü |
Wall
Thickness(mm) |
| EHST(X)25/12-1 |
25 |
0.81 |
12 |
1.60 |
Any |
§¶19,20:shrinked1mm |
| EHST(X)30/15-1 |
30 |
0.67 |
15 |
1.30 |
Any |
§¶19,20:shrinked1mm |
| EHST(X)35/17-1 |
35 |
0.60 |
17 |
1.20 |
Any |
§¶19,20:shrinked1mm |
| EHST(X)40/20-1 |
40 |
0.51 |
20 |
1.00 |
Any |
§¶19,20:shrinked1mm |
| EHST(X)25/12-1.2 |
25 |
0.95 |
12 |
1.85 |
Any |
§¶19,20:shrinked1.2mm |
| EHST(X)30/15-1.2 |
30 |
0.81 |
15 |
1.55 |
Any |
§¶19,20:shrinked1.2mm |
| EHST(X)35/17-1.2 |
35 |
0.70 |
17 |
1.40 |
Any |
§¶19,20:shrinked1.2mm |
| EHST(X)40/20-1.2 |
40 |
0.61 |
20 |
1.20 |
Any |
§¶19,20:shrinked1.2mm |
| EHST(X)25/12-1.5 |
25 |
1.15 |
12 |
2.20 |
Any |
§¶19,20:shrinked1.5mm |
| EHST(X)30/15-1.5 |
30 |
1.00 |
15 |
1.90 |
Any |
§¶19,20:shrinked1.5mm |
| EHST(X)35/17-1.5 |
35 |
0.86 |
17 |
1.70 |
Any |
§¶19,20:shrinked1.5mm |
| EHST(X)40/20-1.5 |
40 |
0.77 |
20 |
1.50 |
Any |
§¶19,20:shrinked1.5mm |
Ordering
¡ïProduct Code¡ïQuantity¡ïPackage
Thank you for your order and Write accurately |
