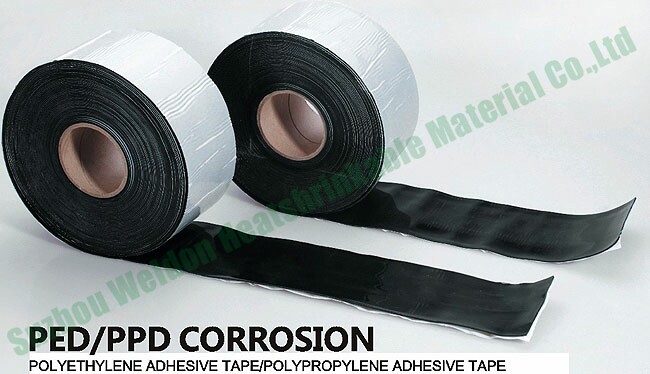

| POLYPROPYLENE ADHESIVE TAPE【PPD】 |
|
PED/PPD with a series of pipeline corrosion products for underground and overhead weld steel pipe, the overall pipeline corrosion and thermal insulation, the overall preservation and design. It is sealed by the hot-melt adhesive polyolefin composite substrate and made of special, special sealing hot melt and polyolefin substrate and the surface and solid epoxy coating can form a good bond. Pipeline corrosion in the construction zone, while the substrate winding in the radial, internal composite layer and the end of plastic bonded together tightly, and the substrate form together into a solid pipeline corrosion body, has excellent resistance to wear, corrosion resistance, impact resistance and good UV resistance and aging properties of light.
PED/PPD pipeline corrosion and adhesive must be used simultaneously with, the construction can be manual, mechanical construction requirements of the corrosion with a hand-pull rather, there can be folded to prevent the product appears in the middle bubble wrapped up after the loss caused by product. |
Features and Benefits
★high mechanical strength
★anti-aging capability
★high environmental stress performance is good
★adhesive outstanding performance
★easy to use |
Color selection
★black |
Technical Details
Table one
| Executive standard |
GB/T 23257-2009,NACE RP0303-2003 |
| Max operating temperature |
60℃ |
| Herein anti-corrosion coating |
PE,PP,FBE |
| Steel tube preheating temperature |
75℃ |
| Recommended rust grades |
Sa 2.5 |
Table two
| Property |
Test method |
Typical value |
| Base material |
| Tensile strength |
GB/T 1040-92 |
24N/mm2 |
| Elongation |
GB/T 1040-92 |
550% |
| Dielectric strength |
GB/T 1408.1-99 |
33MV/mm |
| Volume resistivity |
GB/T 1410-89 |
4╳1015Ω.m |
| Water absorption |
ASTM D570-2005 |
0.02 |
| Heat aging(150℃,21days) |
GB/T 1040-92 |
|
| Tensile strength |
|
14.6N/mm2 |
| Elongation |
|
500% |
| Ultraviolet radiation resistant aging |
EN12068 |
|
| Elongation |
|
480% |
| Hot-melt |
| Softening point |
GB/T4507 |
114℃ |
| Sleeve |
| Peel strength |
GB/T 2792-98 |
|
| For primer steel |
|
160N/cm |
| For PE |
|
80N/cm |
| The cathode stripping(60℃,30d,-1.5v)mm |
SY/T 0413-2002 |
10mm |
| Hot water soak |
ASTM D870-2002 |
No changed |
Example
PED/PPD 200-1.15-25000
◢200means width
◢1.15 means total Thickness is 1.15mm
◢25000 means Length,25000mm/roll
Ordering
★Product Code★Quantity★Package
Thank you for your order and Write accurately |
