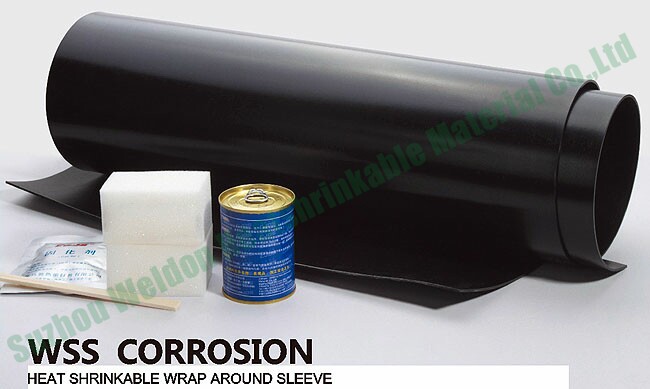

| HEAT SHRINKABLE WRAP AROUND SLEEVE【WSS】 |
|
| WSS heat shrinkable sleeve series products are for buried steel pipeline and overhead Weld corrosion-proof and insulation pipe insulation fill mouth and design. It is by the radiation crosslinking polyolefin base material and special seal glue compound and into, special seal glue with polyolefin base material, steel surface and solid epoxy coating can form good adhesive. WSS heat shrinkable belt in heating installation, base material, in radial in radial shrinkage while, internal composite sub melted, tightly wrapped in filling mouth place, and substrate together in pipe outer forms a solid anticorrosive body, excellent wear resistance, corrosion resistance, impact resistance and good uv light aging performance. |
Features and Benefits
★high mechanical strength
★anti-aging capability
★high environmental stress performance is good
★adhesive outstanding performance
★easy to use |
Shrink physical properties
★Operating Temperature: -40℃ to 80℃
★Shrink Temperature: 105℃ to 135℃
Color selection
★black |
Technical Details
Table one
| Executive standard |
GB/T 23257-2009,NACE RP0303-2003 |
| Max operating temperature |
80℃ |
| Herein anti-corrosion coating |
PE,PP,FBE |
| Steel tube preheating temperature |
75℃ |
| Recommended rust grades |
Sa 2.5 |
Table two
| Property |
Test method |
Typical value |
| Base material |
| Tensile strength |
GB/T 1040-92 |
24N/mm2 |
| Elongation |
GB/T 1040-92 |
520% |
| Dielectric strength |
GB/T 1408.1-99 |
33MV/mm |
| Volume resistivity |
GB/T 1410-89 |
4╳1015Ω.m |
| Water absorption |
ASTM D570-2005 |
0.02 |
| Heat aging(150℃,21days) |
GB/T 1040-92 |
|
| Tensile strength |
|
14.6N/mm2 |
| Elongation |
|
300% |
| Ultraviolet radiation resistant aging |
EN12068 |
|
| Elongation |
|
480% |
| Hot-melt |
| Softening point |
GB/T4507 |
123℃ |
| Sleeve |
| Peel strength |
GB/T 2792-98 |
|
| For primer steel |
|
140N/cm |
| For PE |
|
95N/cm |
| The cathode stripping(60℃,30d,-1.5v)mm |
SY/T 0413-2002 |
18mm |
| Hot water soak |
ASTM D870-2002 |
No changed |
Example
WSS Ф711*520-1.5/1.0
◢711means Pipe Size
◢520means Corrosion width
◢1.5/1.0 means 1.5(Base material)1.0(Hot-melt),total Thickness is 2.5mm
Ordering
★Product Code★Quantity★Package
